Electrical Wire
Electrical Wire Manufacturer: BV/BYJ building wire, BVVB twin & earth, BVR flexible wire and ground wire, 300/500 V–0.6/1 kV. Send your sizes for a quote.
Product Gallery
Electrical Wire— Manufacturer & Supplier
Electrical wire is the low-voltage wiring inside buildings and equipment: single-core wire in conduit, flat sheathed cable for room circuits, flexible wire for panels and connections, and the green/yellow earth conductor. We make all four on the Huanghe lines in Xinxiang, rated 300/500 V, 450/750 V and 0.6/1 kV, in copper or aluminium and 0.5 to 400 mm².

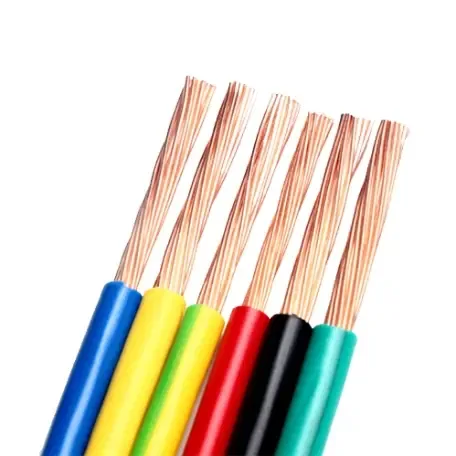

The four products do different jobs, so pick by how the wire is installed. Building wire (BV, BYJ, BLV, THHN) is single-core, unsheathed wire for fixed runs in conduit or trunking. Twin & earth (BVVB, RVVB) is a flat sheathed 2-core + earth cable clipped or run in walls without conduit, where local wiring rules permit. Flexible electrical wire (BVR, BVVR) has a multi-strand copper conductor for panel and equipment wiring and tight routing; the conductor class is confirmed against the standard on your order, and continuous-flex or drag-chain duty requires a separately specified cable construction. Earth / ground cable is green/yellow single-core wire used only as the protective conductor.
PVC, XLPE and LSZH insulation are available, as are FR, FRLS, LSOH and LSHF versions. Every construction is built to the standard named on your order (IEC, EN, BS, UL or CSA as reference standards); standards and certificates are confirmed per model, market and order.
Product Capabilities
Our Electrical Wire Products
Electrical Wire Range — Quick Reference
| Product | Models | Construction | Cores | Cross-section |
|---|---|---|---|---|
| Building Wire | BV, BYJ, BLV, BLYJ, THHN/THWN | Single core, unsheathed (nylon jacket on THHN) | 1 | 0.5–400 mm² |
| Twin & Earth Cable | BVVB, RVVB, BLVVB | Flat, PVC insulated, PVC sheathed | 2, 2+1, 3, 4, 5 | 0.5–400 mm² |
| Flexible Electrical Wire | BVR, BVVR, ZR-BVVR, NH-VVR | Multi-strand copper, optional sheath | 1–5 | 0.5–400 mm² |
| Earth / Ground Cable | BV, BYJ, BVR, ZR-BV, WDZ-BV, NH-BV | Single core, green/yellow insulation | 1 | 0.5–400 mm² |
Source: Huanghe factory product data. Full model tables are on each product page.
Which Electrical Wire Do You Need?
| Product | Installation | Outer sheath | Conductor | Not for |
|---|---|---|---|---|
| Building Wire | Fixed, in conduit or trunking | No | Solid Class 1 standard | Equipment leads or surface wiring without conduit |
| Twin & Earth Cable | Fixed, clipped or in walls | Yes, flat PVC or LSZH | Solid (BVVB) or stranded/flexible (RVVB) | Flexible leads to equipment |
| Flexible Electrical Wire | Panels, equipment leads, vibration | Optional (BVVR) | Multi-strand | Protective earth conductor |
| Earth / Ground Cable | Earthing and bonding | No | Class 1, 2 or 5 | Live or neutral conductors |
Source: Huanghe factory product data.
Application Scenarios
Residential and Commercial Buildings
Building wire in conduit and twin & earth cable for lighting and socket circuits, with earth cable for main earthing and bonding.
Panels and Switchboards
Flexible BVR wire for internal panel wiring and flexible green/yellow earth leads for panel and frame bonding.
Equipment and Appliance Connections
Sheathed flexible BVVR cable and multi-strand BVR wire for equipment connections with tight routing. Continuous-flex duty needs a separately specified cable.
Projects with Fire Performance Requirements
FR, FRLS and LSZH versions, plus flame retardant ZR-BVVR, fire resistant NH-VVR and NH-BV, where the building specification asks for them.
Why Source Electrical Wire From Us
One Factory, Full Wiring Package
Building wire, twin & earth, flexible wire and earth cable come from the same Huanghe production base as our power and control cable, so one order can cover a whole building.
Built to Your Standard
Constructions are made to the IEC, EN, BS, UL or CSA standard named on your order. Standards and certificates are confirmed per model, market and order, and third-party testing or certificates are available when specified. The factory runs ISO 9001 and ISO 14001 management systems.
Colours, Coils and Printing to Order
Insulation colours, coil or drum length and printing on the wire are set per order, so the delivery matches your site and your market.
Frequently Asked Questions — Electrical Wire
Q.What is the difference between building wire and flexible wire?
Building wire (BV) has a solid Class 1 conductor as standard and is for fixed runs in conduit or trunking. Flexible wire (BVR) has a fine-stranded Class 5 conductor for panel and equipment wiring, tight routing and vibration. Class 5 improves flexibility for routing and termination; continuous-flex or drag-chain duty requires a separately specified cable construction.
Q.When should I use twin & earth instead of building wire?
Twin & earth is flat sheathed 2-core + earth cable that can be clipped or run in walls without conduit where local wiring rules permit. Building wire is unsheathed single-core wire that relies on conduit or trunking for protection.
Q.Is earth cable a different product from BV wire?

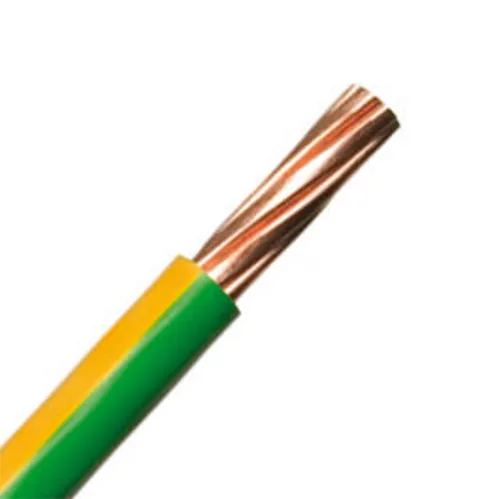

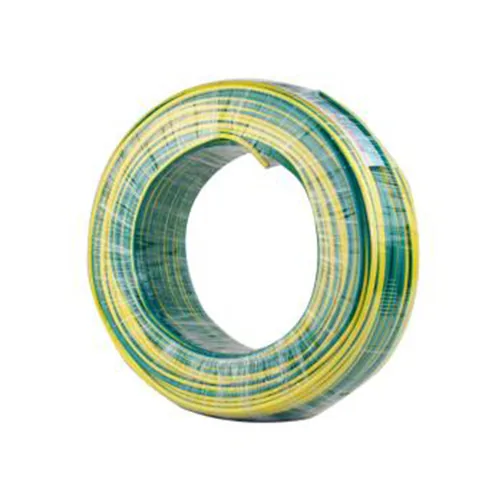

It uses the same single-core constructions (BV, BYJ, BVR and others) with green/yellow insulation, and is used only as the protective conductor for earthing and bonding.
Q.What voltages and sizes do you make?
300/500 V, 450/750 V and 0.6/1 kV, 0.5 to 400 mm². THHN / THWN is made from 14 AWG to 1500 kcmil.
Q.Are halogen-free versions available?
Yes. LSZH insulation or sheath is an option, and FR, FRLS, LSOH and LSHF versions are also produced.
Q.How do I get a quote for electrical wire?
Send the model, sizes, conductor class, insulation, colours, coil or drum length, the standard on your specification and the destination port.
