Copper Braid, Copper Tape and Foil Screened Control Cable
Shielded Control Cable (KVVP / KYJVP)
Published multi-core and multi-pair control-cable structures with braid, tape or foil screens
This factory supply page covers the published KVVP, KVVP2, KVVRP and KYJVP family structures with copper-wire braid, copper tape or aluminium-foil screen options. The exact voltage, conductor, insulation, screen, armour, sheath, core or pair count, section and governing standard are confirmed against the RFQ.
What is Shielded Control Cable (KVVP / KYJVP)?
This page is the commercial supply page for the published shielded control-cable structures. KVVP and KYJVP use a copper-wire braided overall screen; KVVP2 and KYJVP2 use a copper-tape overall screen. The listed range also includes individually screened and screened-armoured structures.
Screen and armour are separate construction requirements. State the exact model or layer sequence in the RFQ, together with voltage, conductor class, insulation, core or pair count, section, sheath and governing standard.
Key features
- Overall screen: copper wire braid (CWS), copper tape (CTS) or aluminium foil

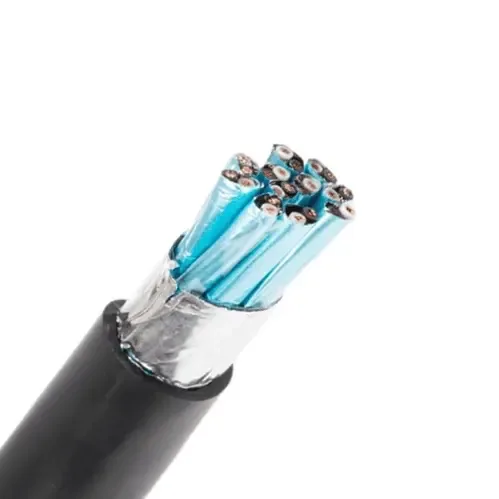

- Optional aluminium foil individual screen on each pair or core
- PVC or XLPE insulation; PE insulation on instrument cable types
- Annealed or tinned copper: solid Class 1, stranded Class 2 or flexible Class 5
- Listed core counts: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 52 or 61 cores, in 0.2, 0.3, 0.5, 0.75, 1, 1.5, 2.5, 4, 6 or 10 mm²
- Listed pair counts: 1, 2, 3, 4, 5, 7, 8, 10, 12, 16, 19 or 24 pairs, in 0.2–2.5 mm² pair sizes
- Optional steel tape (STA) or steel wire (SWA) armour; PVC, PE or LSZH sheath
- FR, FRLS, LSZH, LSOH and LSHF versions also available
Typical applications
- Cable schedules specifying KVVP or KYJVP copper-braid screened models
- Cable schedules specifying KVVP2 or KYJVP2 copper-tape screened models
- RFQs specifying individually screened pairs or cores
- RFQs specifying a published screened flexible or screened-armoured model
PVC Insulated Shielded Control Cable — Types (450/750 V, 600/1000 V)
Source: Huanghe factory product data
IS = aluminium foil individual screen (optional), OS = overall screen. All types are listed in these combinations only, not every intermediate count: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 52 or 61 cores, in 0.2, 0.3, 0.5, 0.75, 1, 1.5, 2.5, 4, 6 or 10 mm²; or 1, 2, 3, 4, 5, 7, 8, 10, 12, 16, 19 or 24 pairs, in 0.2–2.5 mm². Flame retardant and fire resistant versions are also available.
Custom sizes available on request — send us your project specification.
| Type | Structure | Overall Screen | Armour | Conductor |
|---|---|---|---|---|

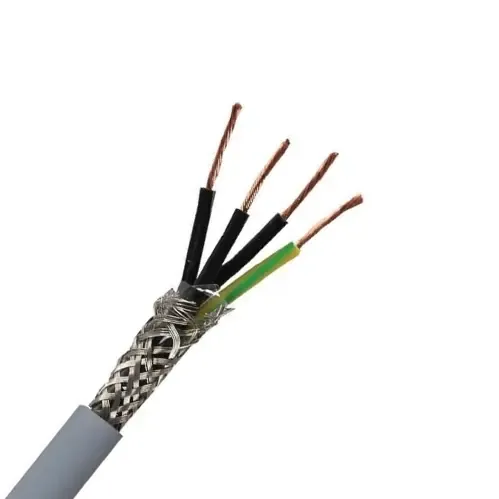

| KVVP | Cu / PVC / (IS)OS / PVC | Copper wire braid | None | Solid or stranded |

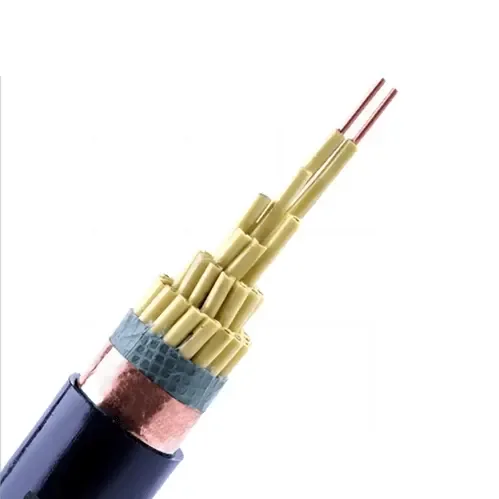

| KVVP2 | Cu / PVC / (IS)OS / PVC | Copper tape | None | Solid or stranded |
| KVVRP | Cu / PVC / (IS)OS / PVC | Copper wire braid | None | Flexible |
| KVVRP32 | Cu / PVC / (IS)OS / SWA / PVC | Copper wire braid | Steel wire | Flexible |
| KVVP2-32 | Cu / PVC / (IS)OS / SWA / PVC | Copper tape | Steel wire | Solid or stranded |
XLPE Insulated Shielded Control Cable — Types (450/750 V, 600/1000 V)
Source: Huanghe factory product data
Same core counts, pair counts and cross-sections as the PVC range.
| Type | Structure | Overall Screen | Armour | Conductor |
|---|---|---|---|---|
| KYJVP | Cu / XLPE / (IS)OS / PVC | Copper wire braid | None | Solid or stranded |
| KYJVP2 | Cu / XLPE / (IS)OS / PVC | Copper tape | None | Solid or stranded |
| KYJVRP | Cu / XLPE / (IS)OS / PVC | Copper wire braid | None | Flexible |
| KYJVRP32 | Cu / XLPE / (IS)OS / SWA / PVC | Copper wire braid | Steel wire | Flexible |
| KYJVP2-32 | Cu / XLPE / (IS)OS / SWA / PVC | Copper tape | Steel wire | Solid or stranded |
Instrument Control Cable — Screened Types
Source: Huanghe factory product data
2–12 cores or 1–10 pairs, 0.2–2.5 mm².
| Type | Voltage | Structure | Construction |
|---|---|---|---|
| JVVP | 450/750 V | Cu / PVC / OS / PVC | PVC insulated, copper wire braided screen, PVC sheathed |
| JYVP | 450/750 V | Cu / PE / OS / PVC | PE insulated, twisted pairs, aluminium foil individual screen, copper wire braided overall screen, PVC sheathed |
| DJYJVP | 300/500 V | Cu / PE / IS / OS / PVC | PE insulated, twisted pairs, copper wire braided screen, PVC sheathed |
Materials and Bending Radius
Source: Huanghe factory product data
D = overall diameter of the cable.
| Parameter | Specification |
|---|---|
| Voltage | 300/500 V, 450/750 V, 600/1000 V |
| Conductor | Annealed copper or tinned copper — solid Class 1, stranded Class 2, flexible Class 5 |
| Insulation | PVC, XLPE or PE |
| Screen | Copper tape (CTS), copper wire braid (CWS), aluminium foil |
| Armour (optional) | Steel tape (STA), steel wire (SWA) |
| Outer sheath | PVC, PE or LSZH |
| Min. bending radius, armoured or shielded control cable | Not less than 12D |
| Min. bending radius, shielded flexible control cable | Not less than 6D |
Need OD, weight and screen coverage for your size?
Dimensions and drum weights depend on the screen type, individual pair screening and armour. Send us the type, core or pair count, cross-section, voltage and destination port and we will return a data sheet with overall diameter, drum weights and per-metre pricing.
What to send us for a shielded control cable quote
- Type or construction, e.g. KVVP 10×1.5 mm² or Cu/PVC/OS/PVC
- Core count, or pair count if the signals run in twisted pairs
- Overall screen: copper wire braid, copper tape or aluminium foil
- Individual foil screen on each pair: yes or no
- PVC or XLPE insulation, and solid/stranded or flexible Class 5 conductor
- Armour needed for mechanical protection: none, STA or SWA
- Sheath: PVC, PE or LSZH, and any flame retardant requirement
- Standard named in your specification, length per size and destination port
Shielded Control Cable (KVVP / KYJVP) gallery
Factory & delivery capability
Real photos from our production facility — from raw material to container loading.
Production Line
Quality Testing
Warehouse & Stock
Drum Packaging
Container Loading
Ready to Ship
Frequently asked questions about Shielded Control Cable (KVVP / KYJVP)
Q.What is the difference between KVVP and KVVP2?
Both are PVC insulated shielded control cable. KVVP has a copper wire braided overall screen; KVVP2 has a copper tape overall screen. Either can be made with an aluminium foil screen on each pair underneath.
Q.Is a shielded control cable the same as an armoured control cable?
No. The screen is a copper braid, copper tape or foil layer that handles electromagnetic interference. Armour is steel tape or steel wire that handles mechanical damage. A cable can have one, the other or both; KVVRP32 and KVVP2-32, for example, have a screen and steel wire armour.
Q.When do I need a shielded control cable instead of standard KVV?
When control or signal circuits run near power cable, drives, contactors or other interference sources, or when the project specification calls for screened cable. If neither applies, standard KVV is the simpler choice.
Q.Can you screen each pair individually?
Yes. The shielded range can be made with an aluminium foil screen on each pair under the overall screen, in 1, 2, 3, 4, 5, 7, 8, 10, 12, 16, 19 or 24 pairs of 0.2–2.5 mm².
Q.Is a flexible shielded version available?
Yes. KVVRP and KYJVRP use flexible Class 5 copper with a copper wire braided screen. The minimum bending radius for shielded flexible control cable is not less than 6D. Class 5 improves flexibility for routing and termination; continuous-flex or drag-chain duty requires a separately specified cable construction.
Q.Which certificates or test reports can you provide for shielded control cable?
At the moment there is no published certificate or test report that matches a specific model in this shielded control range, and we do not apply our CB, CCC or medium-voltage reports to it. Routine factory tests, and any third-party test or inspection your project needs, are agreed per model and order at the quotation stage, so tell us the standard and inspection body when you ask for a quote.
Q.Which governing standard applies to a shielded-control order?
State the governing standard in the RFQ. The available factory source lists the model structures and construction options but does not support assigning one blanket IEC, EN, BS, UL or CSA standard to every shielded-control model.
