All Aluminum Conductor
AAC Cable
Lightweight bare conductor for urban distribution networks
AAC (All Aluminum Conductor) is a stranded conductor made entirely of hard-drawn 1350-H19 aluminum wires. With higher conductivity than ACSR and lighter weight, AAC is ideal for short-span urban distribution and coastal areas where corrosion resistance from aluminum is preferred over steel.
AAC supply scope
This page is the commercial supply page for AAC, a bare conductor made entirely from aluminium wires. The metric and ASTM codeword tables are kept on this page; AAAC alloy conductor and steel-reinforced ACSR remain separate product families with their own standards and quotations.
Specify the governing standard first, then the metric section or ASTM codeword. The same nominal size can appear with different strand counts, wire diameters and units, so the factory confirms the exact stranding, diameter, weight and order documents before quotation.
Key features
- Higher conductivity vs. ACSR (61% IACS minimum)
- Lower weight, easier installation
- Better corrosion resistance — preferred for coastal regions
- Standard codes: Poppy, Aster, Phlox, Oxlip, Daisy, Tulip, Canna, Cosmos, Syringa
Typical applications
- Urban distribution networks (≤ 35 kV)
- Coastal / marine environments (corrosion-prone)
- Short-span overhead lines
- Bus bars in substations
Common AAC Sizes (per IEC 61089)
Source: Huanghe Cables official product data, huanghecables.com/aac-bare-conductor.html — codeword, section, stranding, diameter, weight and resistance values as published
Custom sizes available on request — send us your project specification.
| Code Name | Cross Section (mm²) | Stranding | Overall Diameter (mm) | Approx. Weight (kg/km) | DC Resistance @20°C (Ω/km) |
|---|---|---|---|---|---|
| Peachbell | 13.30 | 7 | 4.65 | 36.6 | 2.1480 |
| Iris | 21.10 | 7 | 5.85 | 58.0 | 1.3540 |
| Rose | 33.60 | 7 | 7.50 | 92.5 | 0.8489 |
| Aster | 50.10 | 7 | 9.00 | 138 | 0.5707 |
| Poppy | 70.40 | 7 | 11.55 | 194 | 0.4068 |
| Tulip | 171.10 | 19 | 16.92 | 470 | 0.1672 |
| Canna | 338.20 | 37 | 23.93 | 933 | 0.0857 |
| Cosmos | 506.10 | 61 | 29.20 | 1394 | 0.0577 |
AAC Metric Sizes — Stranding, Weight and Overall Diameter
Source: Huanghe Cables official product data, huanghecables.com/aac-bare-conductor.html — values as published
IEC 60228 stranded class 2. The last four rows are alternative stranding options for 50 mm² and 70 mm² — same cross-section, different strand count and wire diameter, so weight and overall diameter differ. Confirm which stranding your specification calls for.
| Conductor Size (mm²) | Stranding (mm) | Number of Strands | Weight (kg/km) | Overall Diameter (mm) |
|---|---|---|---|---|
| 6 | 1.04 | 7 | 58 | 3.00 |
| 10 | 1.35 | 7 | 96 | 4.20 |
| 16 | 1.70 | 7 | 154 | 5.10 |
| 25 | 2.14 | 7 | 240 | 5.90 |
| 35 | 2.52 | 7 | 336 | 7.80 |
| 50 | 1.78 | 19 | 480 | 8.80 |
| 70 | 2.14 | 19 | 672 | 9.80 |
| 95 | 2.52 | 19 | 912 | 12.50 |
| 120 | 2.03 | 37 | 1152 | 12.80 |
| 150 | 2.25 | 37 | 1440 | 14.40 |
| 185 | 2.52 | 37 | 1776 | 16.10 |
| 240 | 2.25 | 61 | 2304 | 19.80 |
| 300 | 2.52 | 61 | 2800 | 20.60 |
| 400 | 2.85 | 61 | 3750 | 26.40 |
| 50 | 3.0 | 7 | 445 | 9.20 |
| 50 | 1.80 | 19 | 405 | 9.20 |
| 70 | 3.55 | 7 | 621 | 10.65 |
| 70 | 2.1 | 19 | 640 | 10.65 |
AAC ASTM Codeword Range — 6 AWG to 3500 kcmil
Source: Huanghe Cables official product data, huanghecables.com/aac-bare-conductor.html — values as published
ASTM B231 imperial sizing, quoted by flower codeword. OD in mils (1 mil = 0.0254 mm), weight in lbs per 1000 ft. Values are reproduced exactly as published — the PETUNIA weight reads 7.3 in the source table, which is inconsistent with its neighbours; ask us to confirm that one figure before you quote on it.
| Codeword | Size (AWG or kcmil) | No. of Strands | Nom. OD (mils) | Nominal Total Weight (lbs/1000 ft) |
|---|---|---|---|---|
| FEACHBELL | 6 AWG | 7 | 183 | 25 |
| ROSS | 4 AWG | 7 | 231 | 39 |
| IRIS | 2 AWG | 7 | 292 | 62 |
| POPPY | 1/0 AWG | 7 | 368 | 99 |
| ASTER | 2/0 AWG | 7 | 413 | 125 |
| PHLOX | 3/0 AWG | 7 | 464 | 157 |
| OXLIP | 4/0 AWG | 7 | 521 | 198 |
| VALERIAN | 250 kcmil | 19 | 573 | 234 |
| DAISY | 266.8 kcmil | 7 | 585 | 250 |
| TULIP | 336.4 kcmil | 19 | 665 | 316 |
| DAFFODIL | 350 kcmil | 19 | 678 | 328 |
| CANNA | 397.5 kcmil | 19 | 723 | 373 |
| COSMOS | 477 kcmil | 19 | 792 | 447 |
| HYACINTH | 500 kcmil | 37 | 813 | 468 |
| DAHLIA | 556.5 kcmil | 19 | 855 | 523 |
| MEADOWSWEET | 600 kcmil | 37 | 891 | 562 |
| ORCHID | 636 kcmil | 37 | 917 | 596 |
| VIOLET | 715.5 kcmil | 37 | 973 | 671 |
| PETUNIA | 750 kcmil | 37 | 996 | 7.3 |
| ARBUTUS | 795 kcmil | 37 | 1026 | 745 |
| COCKSCOMB | 900 kcmil | 37 | 1092 | 844 |
| MAGNOLIA | 954 kcmil | 37 | 1124 | 894 |
| BLUEBELL | 1033.5 kcmil | 37 | 1169 | 971 |
| MARIGOLD | 1113 kcmil | 61 | 1215 | 1044 |
| HAWTHORN | 1192.5 kcmil | 61 | 1258 | 1117 |
| NARCISSUS | 1272 kcmil | 61 | 1299 | 1192 |
| COLUMBINE | 1351 kcmil | 61 | 1339 | 1266 |
| CARNATION | 1431 kcmil | 61 | 1378 | 1342 |
| COREOPSIS | 1590 kcmil | 61 | 1452 | 1489 |
| JESSAMINE | 1750 kcmil | 61 | 1524 | 1641 |
| COWSLIP | 2000 kcmil | 91 | 1630 | 1873 |
| SAGEBRUSH | 2250 kcmil | 91 | 1729 | 2128 |
| PIGWEED | 2300 kcmil | 61 | 1747 | 2177 |
| LUPINE | 2500 kcmil | 91 | 1822 | 2365 |
| TRILLIUM | 3000 kcmil | 127 | 1998 | 2840 |
| BLUEBONNET | 3500 kcmil | 127 | 2158 | 3344 |
| BRITISH ANT | 52.79 mm² | 7 | 366 | 98 |
Need a size or codeword not listed above?
We manufacture AAC to IEC 61089, ASTM B231, BS 215 Part 1, DIN 48201 and GB/T 1179, from 6 mm² to 800 mm² metric and 6 AWG to 3500 kcmil imperial. Send us the cross-section or codeword, the standard your project specifies, the drum length and the destination port and we will return a stamped data sheet with stranding, weight, rated strength and per-km pricing.
Information needed for an AAC quotation
- Governing AAC product standard
- Metric section or ASTM codeword
- Required stranding when stated in the tender
- Required conductor finish or special treatment
- Drum length and total quantity
- Destination port and order-specific inspection documents

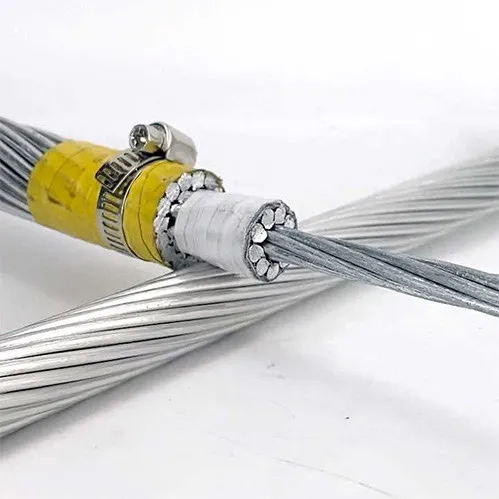

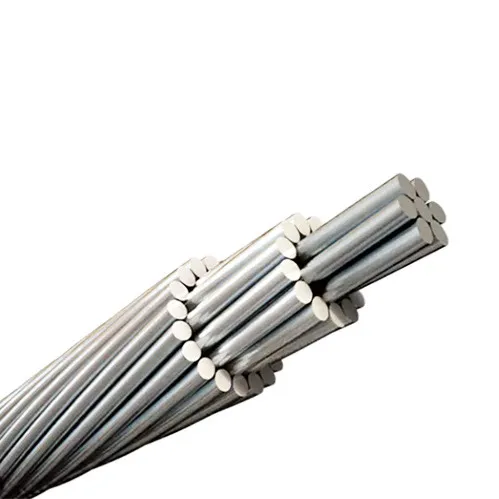

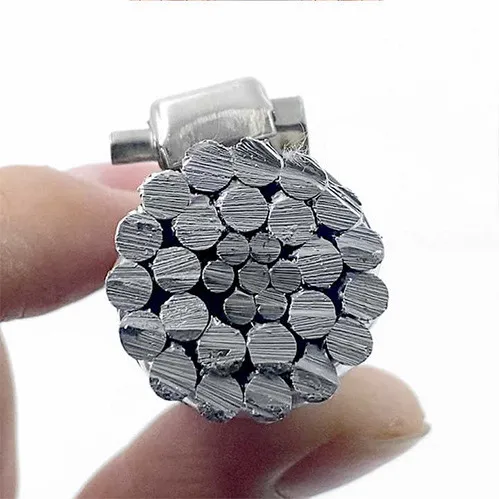

AAC gallery
Factory & delivery capability
Real photos from our production facility — from raw material to container loading.
Production Line
Quality Testing
Warehouse & Stock
Drum Packaging
Container Loading
Ready to Ship
Frequently asked questions about AAC
Q.When should I choose AAC over ACSR?
Use the conductor family named in the line design and bill of quantities. AAC has no steel core; ACSR does. Send the governing standard, size and mechanical requirements so the factory can quote the specified construction without turning this product page into a line-design comparison.
Q.What aluminum grade do you use?
The published AAC construction uses hard-drawn aluminium. State the governing standard and any material or conductivity clause in the RFQ; the factory confirms the applicable material and mill documents for the exact order.
Q.Can you produce AAC to BS 215 Part 1?
Yes. We manufacture to BS 215 Part 1, IEC 61089, ASTM B231, DIN 48201, and GB/T 1179. State your project specification when ordering.
