Aluminum Conductor Steel Reinforced
ACSR Cable
High tensile strength overhead conductor for long-span transmission
ACSR (Aluminum Conductor Steel Reinforced) consists of one or several layers of hard-drawn aluminium wires to BS EN 60889 AL1, stranded around a zinc-coated steel core to BS EN 50189 (class and grade per ST1A, ST5E or ST6C). The steel core delivers high mechanical strength while the aluminium strands carry the current — making ACSR the most widely used overhead conductor for high-voltage transmission lines worldwide.
ACSR supply scope
This single ACSR product page covers both metric AL/ST sizes and project codewords. Dog, Wolf and other regional codewords remain quotation inputs on this page rather than separate product URLs, because the governing standard and construction must be checked before a codeword is matched to a conductor.
The 51-row table is reproduced from the Huanghe factory catalogue. Specify the governing standard and exact metric size or codeword in the RFQ; the factory will then confirm the applicable stranding, resistance, breaking load, weight and inspection documents for that order.
Key features
- High mechanical strength from galvanized steel core
- Excellent current-carrying capacity from EC-grade aluminum
- Long span capability with low sag at high temperatures
- Quoted by metric AL/ST cross-section (10/2 up to 800/100 mm²); codeword equivalents supplied on request — ASTM B232 bird names (Drake, Linnet, Partridge, Grosbeak) or the IS 398 / BS animal names (Weasel, Dog, Wolf, Panther, Zebra, Moose)
- Greased / non-greased options for corrosion protection
Typical applications
- Overhead transmission lines (110 kV / 220 kV / 500 kV)
- Long-span river / valley crossings
- Distribution networks in high-load areas
- Substation interconnections
ACSR Metric Range — AL/ST 10/2 to 800/100
Source: 黄河工厂数据 Huanghe factory data — ACSR catalogue p.3-4, values as published
Cross-section is quoted as aluminium/steel (AL/ST). All figures are reproduced from the catalogue without adjustment, with one editorial correction: the catalogue prints the outer-diameter column head as (mm²), which is a unit typo, so it is shown here as (mm). Two rows do not reconcile with their own stranding: 25/4 shows a 1/1.32 steel core (about 1.4 mm² against a 4 mm² nominal) and 300/25 shows 7/7.22 (about 287 mm² against a 25 mm² nominal). Both are left as printed rather than corrected — ask us to confirm either figure before you quote on it.
Custom sizes available on request — send us your project specification.
| Nominal Cross Section AL/ST (mm²) | Aluminium Structure (no./dia mm) | Steel Structure (no./dia mm) | Overall Diameter (mm) | DC Resistance at 20℃ (Ω/km) | Calculated Breaking Load (N) | Calculated Weight (kg/km) | Continuous Ampacity (A) |
|---|---|---|---|---|---|---|---|
| 10/2 | 6/1.50 | 1/1.50 | 4.50 | 2.706 | 4120 | 42.9 | 87 |
| 16/3 | 6/1.85 | 1/1.85 | 5.55 | 1.799 | 6130 | 65.2 | 110 |
| 25/4 | 6/2.32 | 1/1.32 | 6.96 | 1.131 | 9290 | 102.6 | 125 |
| 35/6 | 6/2.72 | 1/2.72 | 8.16 | 0.8230 | 12630 | 141.0 | 145 |
| 50/8 | 6/3.20 | 1/3.20 | 9.60 | 0.5946 | 16870 | 195.1 | 212 |
| 50/30 | 12/2.32 | 7/2.32 | 11.60 | 0.5692 | 42620 | 372.0 | 250 |
| 70/10 | 6/3.80 | 1/3.80 | 11.40 | 0.4217 | 23390 | 275.2 | 255 |
| 70/40 | 12/2.72 | 7/2.72 | 13.60 | 0.4141 | 58300 | 511.3 | 340 |
| 95/15 | 26/2.15 | 7/1.67 | 13.61 | 0.3058 | 35000 | 380.8 | 350 |
| 95/20 | 7/4.16 | 7/1.85 | 13.87 | 0.3019 | 37200 | 408.9 | 360 |
| 95/55 | 12/3.20 | 7/3.20 | 16.00 | 0.2992 | 78110 | 707.7 | 420 |
| 120/7 | 18/2.90 | 1/2.90 | 14.50 | 0.2422 | 27570 | 379.0 | 380 |
| 120/20 | 26/2.32 | 7/1.85 | 15.07 | 0.2496 | 41000 | 466.8 | 390 |
| 120/25 | 7/4.72 | 7/2.10 | 15.74 | 0.2345 | 47880 | 526.6 | 400 |
| 120/70 | 12/3.60 | 7/3.60 | 18.00 | 0.2364 | 98370 | 895.6 | 505 |
| 150/8 | 18/3.20 | 1/3.20 | 16.00 | 0.1989 | 32860 | 461.4 | 442 |
| 150/20 | 24/2.78 | 7/1.85 | 16.67 | 0.1980 | 46630 | 549.4 | 450 |
| 150/25 | 26/2.70 | 7/2.10 | 17.10 | 0.1939 | 54110 | 601.0 | 470 |
| 150/35 | 30/2.50 | 7/2.50 | 17.50 | 0.1962 | 65020 | 676.2 | 500 |
| 185/10 | 18/3.60 | 1/3.60 | 18.00 | 0.1572 | 40880 | 584.0 | 497 |
| 185/25 | 24/3.15 | 7/2.10 | 18.90 | 0.1542 | 59420 | 706.1 | 525 |
| 185/30 | 26/2.98 | 7/2.32 | 18.88 | 0.1592 | 64320 | 732.6 | 525 |
| 185/45 | 30/2.80 | 7/2.80 | 19.60 | 0.1564 | 80190 | 848.2 | 522 |
| 210/10 | 18/3.80 | 1/3.80 | 19.00 | 0.1411 | 45140 | 650.7 | 523 |
| 210/25 | 24/3.33 | 7/2.22 | 19.98 | 0.1380 | 65990 | 789.1 | 560 |
| 210/35 | 26/3.22 | 7/2.50 | 20.38 | 0.1363 | 74250 | 853.9 | 590 |
| 210/50 | 30/2.98 | 7/2.98 | 20.86 | 0.1381 | 90830 | 906.8 | 600 |
| 240/30 | 24/3.60 | 7/2.40 | 21.60 | 0.1181 | 75620 | 922.2 | 610 |
| 240/40 | 26/3.42 | 7/2.66 | 21.60 | 0.1209 | 83370 | 964.3 | 610 |
| 240/55 | 30/3.20 | 7/3.20 | 22.40 | 0.1189 | 102100 | 1108 | 640 |
| 300/15 | 40/3.00 | 7/1.67 | 23.01 | 0.09724 | 68060 | 939.8 | 650 |
| 300/20 | 45/2.93 | 7/1.95 | 23.43 | 0.09520 | 75680 | 1002 | 655 |
| 300/25 | 48/2.85 | 7/7.22 | 23.76 | 0.09433 | 83410 | 1058 | 690 |
| 300/40 | 24/3.99 | 7/2.66 | 23.94 | 0.09614 | 92220 | 1133 | 705 |
| 300/50 | 26/3.83 | 7/2.98 | 24.26 | 0.09636 | 103400 | 1210 | 725 |
| 300/70 | 30/3.60 | 7/3.60 | 25.20 | 0.09463 | 128000 | 1402 | 740 |
| 400/20 | 42/3.51 | 7/1.95 | 26.91 | 0.07104 | 88850 | 1286 | 800 |
| 400/25 | 45/3.33 | 7/2.22 | 26.64 | 0.07370 | 95940 | 1295 | 800 |
| 400/35 | 48/3.22 | 7/2.50 | 26.82 | 0.07389 | 103900 | 1349 | 810 |
| 400/50 | 54/3.07 | 7/3.07 | 27.63 | 0.07232 | 123400 | 1511 | 815 |
| 400/65 | 26/4.22 | 7/3.44 | 28.00 | 0.07236 | 135200 | 1611 | 850 |
| 400/95 | 30/4.16 | 19/2.50 | 29.14 | 0.07087 | 171300 | 1860 | 873 |
| 500/35 | 45/3.75 | 7/2.50 | 30.00 | 0.05812 | 119500 | 1642 | 920 |
| 500/45 | 48/3.60 | 7/2.80 | 30.00 | 0.05912 | 128100 | 1688 | 920 |
| 500/65 | 54/3.44 | 7/3.44 | 30.96 | 0.05760 | 154000 | 1897 | 935 |
| 630/45 | 45/4.20 | 7/2.80 | 33.60 | 0.04633 | 148700 | 2060 | 1025 |
| 630/55 | 48/4.12 | 7/3.20 | 34.32 | 0.04514 | 164400 | 2209 | 1060 |
| 630/80 | 54/3.87 | 18/2.32 | 34.82 | 0.04551 | 192900 | 2388 | 1120 |
| 800/55 | 45/4.80 | 7/3.20 | 38.40 | 0.03547 | 191500 | 2690 | 1220 |
| 800/70 | 48/4.63 | 7/3.60 | 38.58 | 0.03574 | 207000 | 2791 | 1223 |
| 800/100 | 54/4.33 | 19/2.60 | 38.98 | 0.03635 | 241100 | 2991 | 1240 |
Need a size or codeword not listed above?
The table covers the 51 metric AL/ST sizes we hold catalogue data for. We also quote against codewords: ASTM B232 bird names (Drake, Linnet, Partridge, Grosbeak and the rest of the series) and the IS 398 / BS animal names widely used in India, Africa and the Middle East (Weasel, Rabbit, Dog, Wolf, Panther, Zebra, Moose). Send the cross-section or codeword, the standard your project specifies, the drum length and the destination port and we will return a stamped data sheet with stranding, DC resistance, breaking load, weight and per-km pricing.
Information needed for an ACSR quotation
- Governing product standard
- Metric AL/ST size or project codeword
- Required stranding, when stated in the tender
- Greased or non-greased construction
- Required drum length and total quantity
- Destination port and order-specific inspection documents

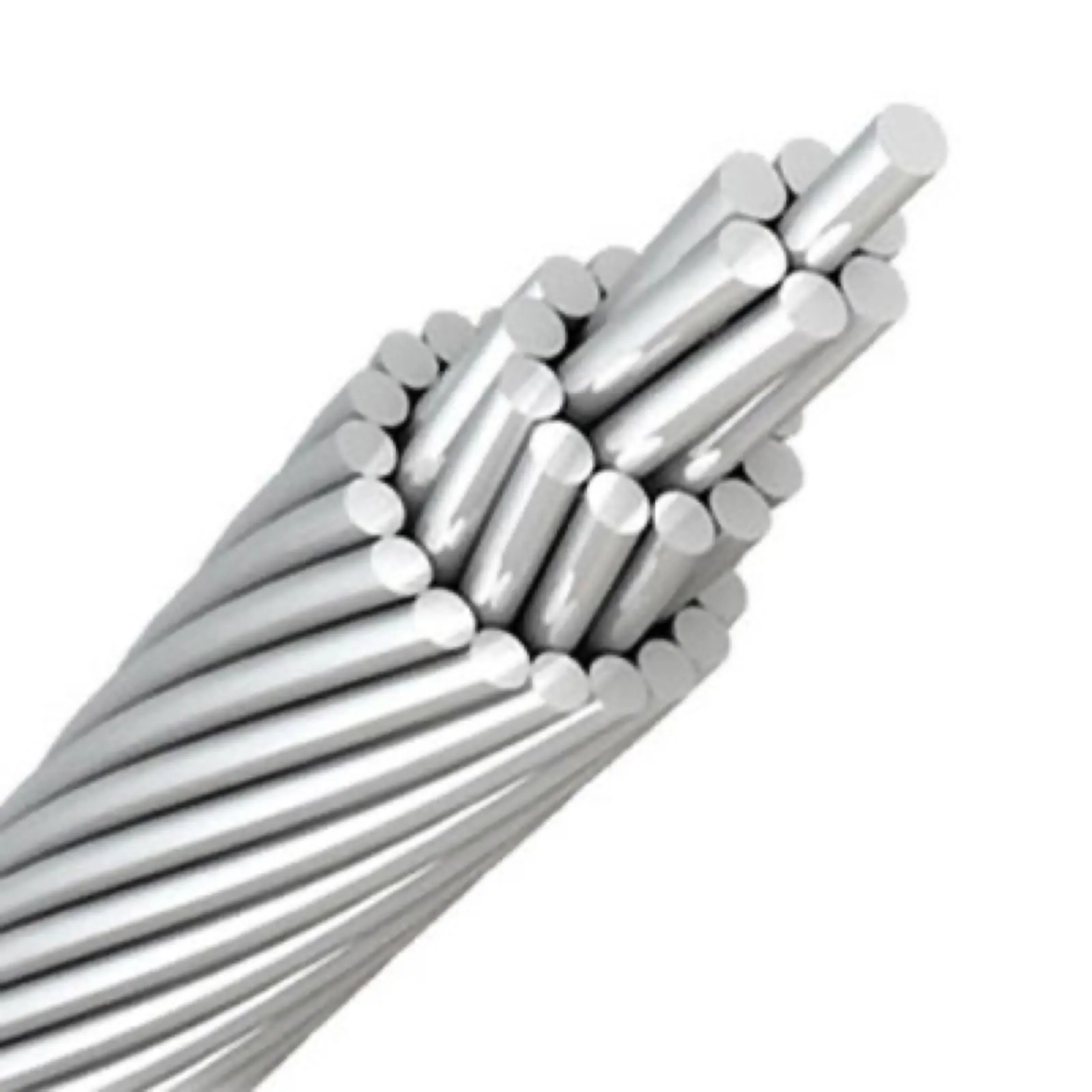

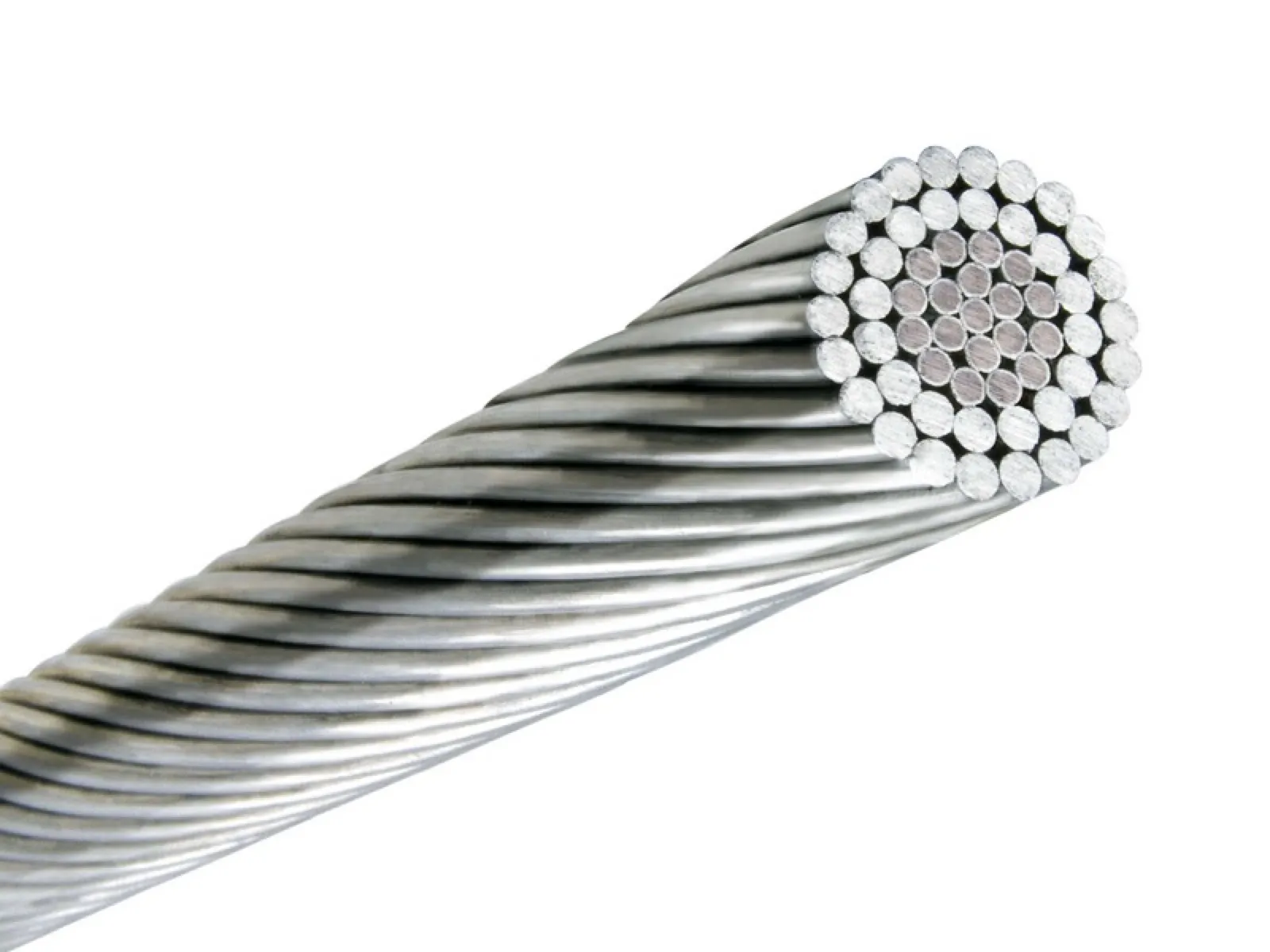

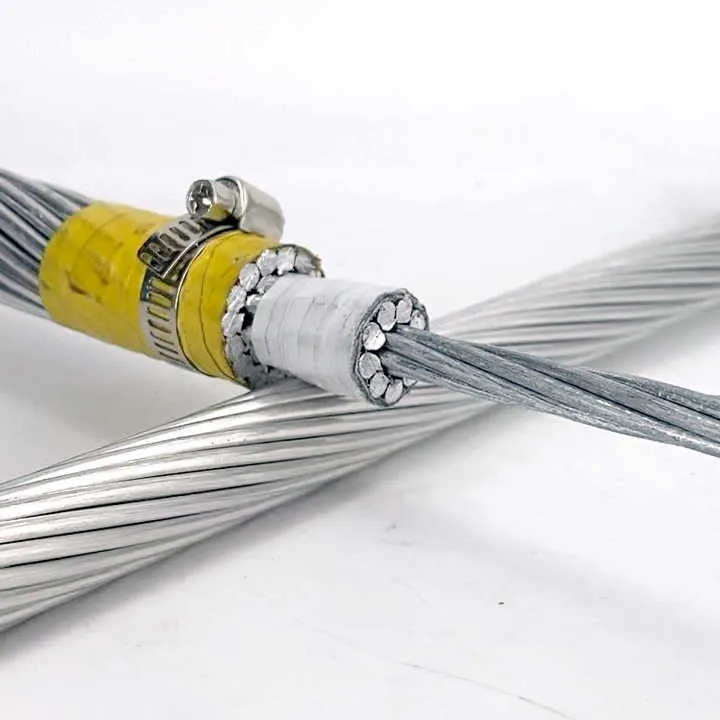

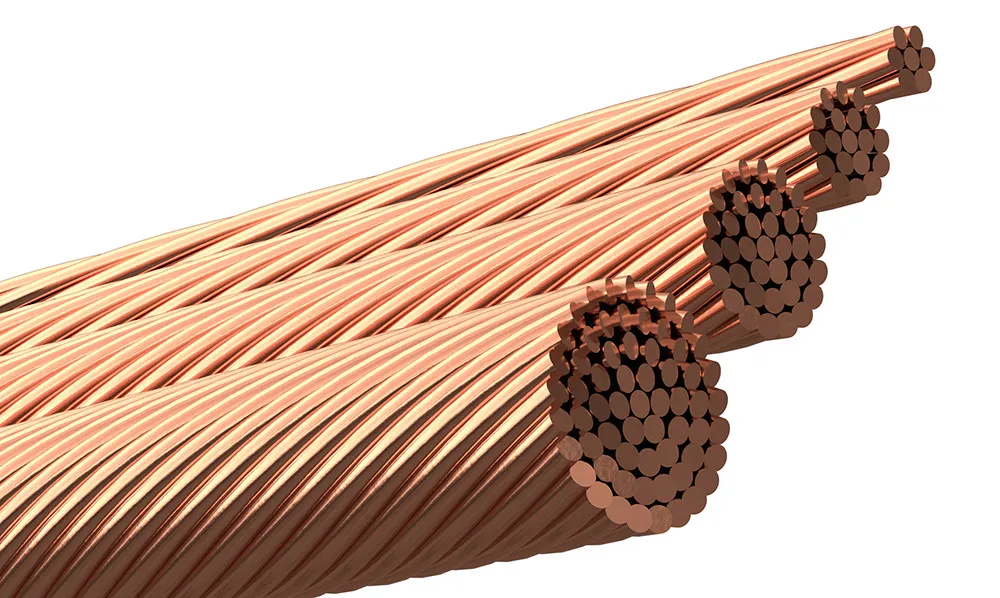

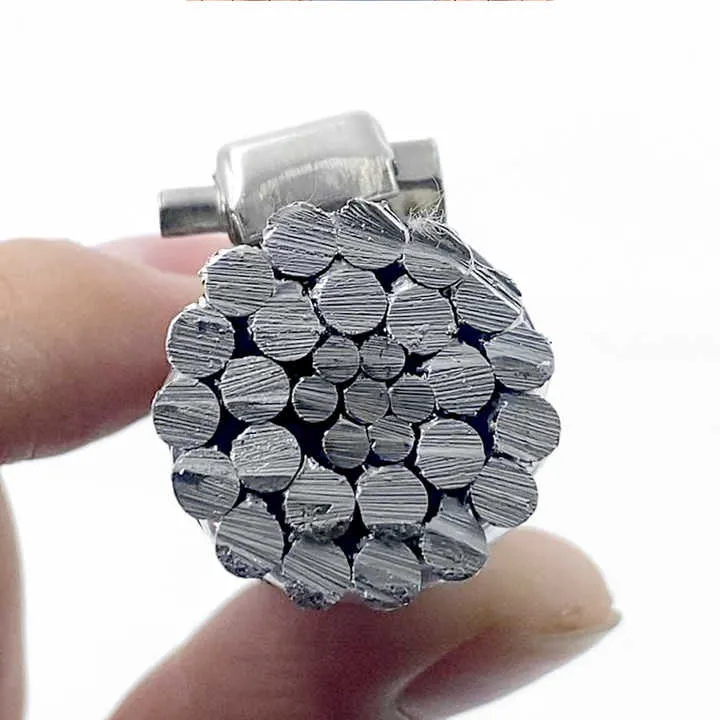

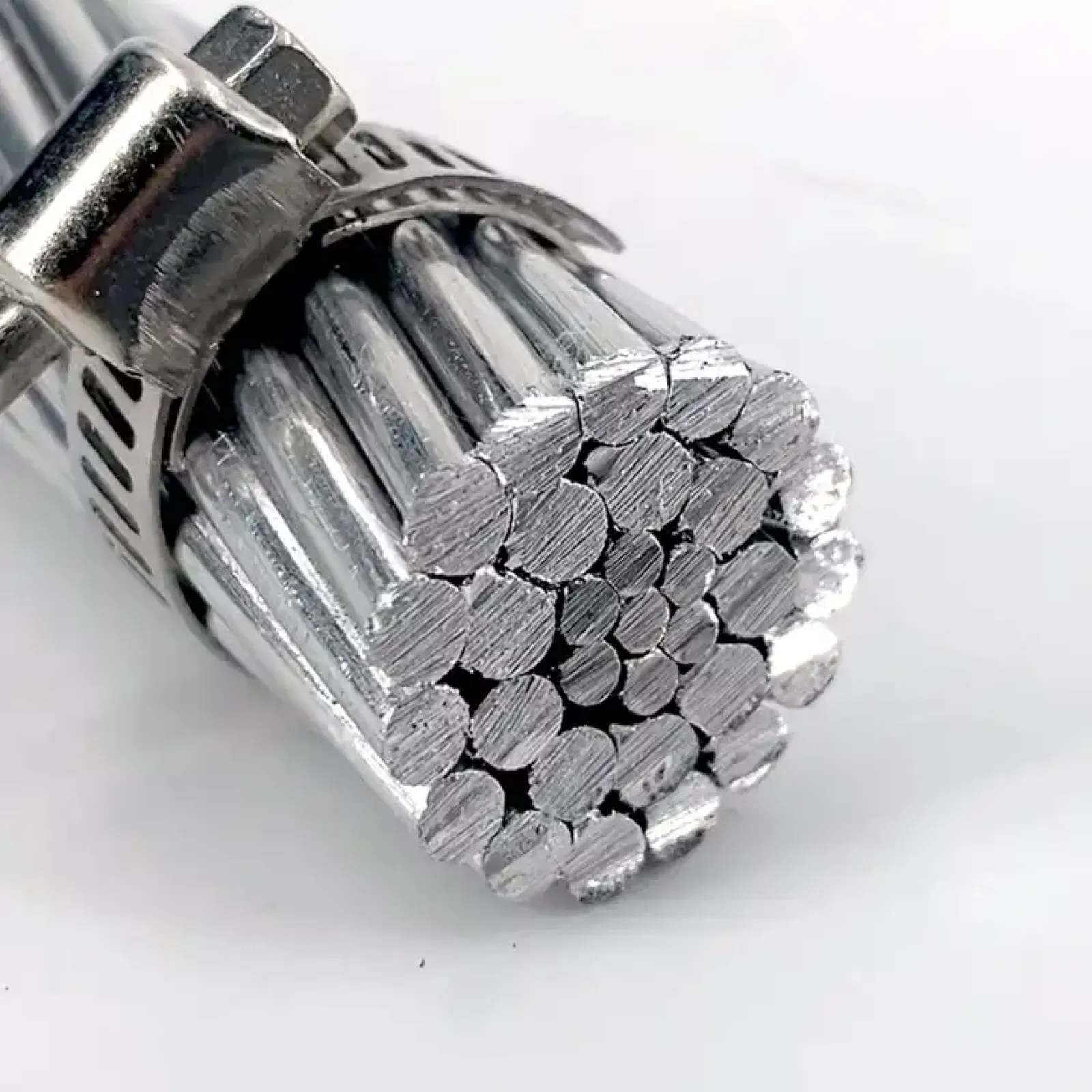

ACSR gallery
Factory & delivery capability
Real photos from our production facility — from raw material to container loading.
Production Line
Quality Testing
Warehouse & Stock
Drum Packaging
Container Loading
Ready to Ship
Frequently asked questions about ACSR
Q.What is the difference between ACSR and AAC?
ACSR has a galvanized steel core for higher tensile strength, ideal for long spans and high-voltage transmission. AAC is all-aluminum, lighter and with better conductivity, used for shorter urban distribution spans where strength is less critical.
Q.Which standard do you manufacture ACSR to?
We manufacture to IEC 61089, ASTM B232, BS 215 Part 2, DIN 48204, and GB/T 1179. Specify your project standard when requesting a quote and we will produce accordingly.
Q.What is the typical lead time for ACSR orders?
Lead time depends on the standard, conductor construction, drum plan and order quantity. Send the complete schedule and destination port for an order-specific production and shipping quotation.
Q.Which test and inspection documents should I specify?
Name the product standard and every regional conformity or inspection requirement in the RFQ. The factory will confirm which documents apply to the exact construction and order; this page does not claim blanket CB, KEMA, SASO or SONCAP coverage.
